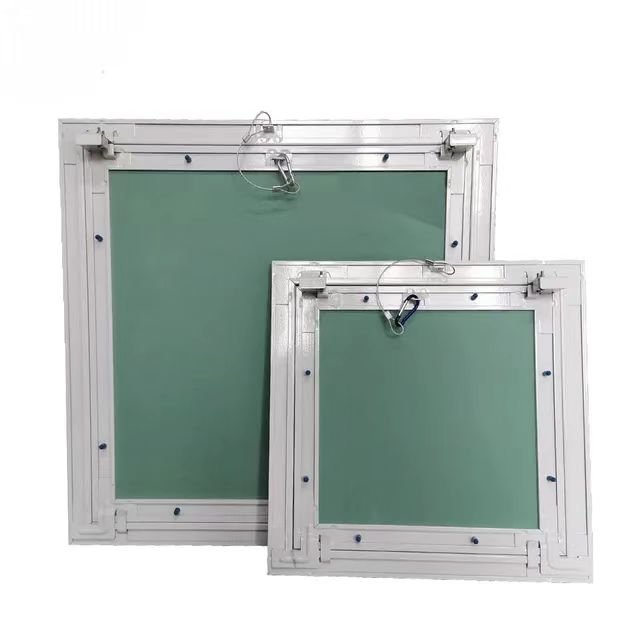

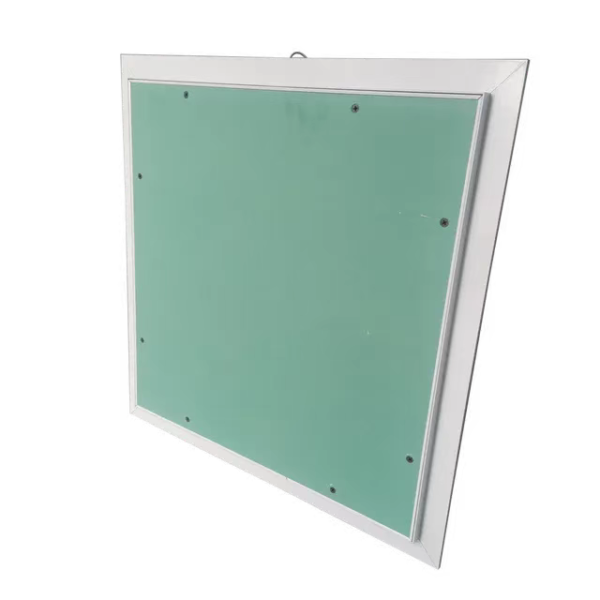

It is made of 2mm aluminum alloy profiles, mechanically stamped and processed,
and the middle movable cover is 12mm moisture-proof gypsum board with
dust-proof strips around it.
Product Size Details
| Product Number | Inner dimension | Outer dimension | Reserve keel spacing |
| HBGT001-1 | 200X200 | 258X258 | 208X208 |
| HBGT001-2 | 300X300 | 358X358 | 308X308 |
| HBGT001-3 | 400X400 | 458X458 | 408X408 |
| HBGT001-4 | 450X450 | 508X508 | 458X458 |
| HBGT001-5 | 500X500 | 558X558 | 508X508 |
| HBGT001-6 | 600X600 | 658X658 | 608X608 |
Product Detailed Drawing
Product Characteristics
*Good quality: Made of aluminum profile, strong bearing capacity, not easy to deform.
*High cleanliness: equipped with dust-proof strips around, avoiding the occurrence of falling dust, is the ideal choice.
*The product is closed at the intersection of high, small gap.
*Using the down-turn process, easy to open.
*Easy to install: with the traditional aluminum alloy access port installation, simple, flexible, its thickness can be matched with different thickness of paper plasterboard.
*Convenient transportation, not easy to be damaged.
Product Packaging
It’s a great pleasure to invite you to our website. We specialize in the production and sales of ceilings. You will get something here. We look forward to cooperation with you soon.
